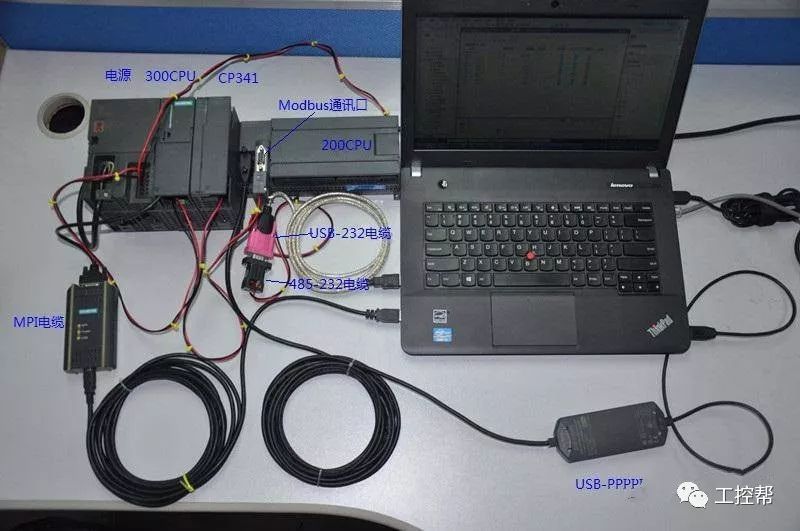

Take a look at this image, which illustrates the basic communication locations used in Siemens PLC systems.
1. First, PPI Communication
PPI (Process Panel Interface) is the most fundamental communication method for the S7-200 CPU. It uses the built-in port (PORT0 or PORT1), making it the default communication protocol for S7-200 systems. This method is ideal for simple point-to-point communication between the PLC and other devices such as HMIs or programming tools.
2. Second, RS485 Serial Communication
RS485 is widely supported by third-party devices, and Siemens S7 PLCs can communicate via free port mode. In basic scenarios, only the XMT (Transmit) instruction is needed to send data to devices like printers or inverters. However, more complex interactions require custom programming on the PLC side.
When using the free port mode, users can control the communication port through instructions like XMT, RCV (Receive), and interrupts for transmission and reception. This offers greater flexibility but requires careful configuration and coding.
3. Third, MPI Communication
MPI (Multi-Point Interface) is a straightforward communication method with speeds ranging from 19.2 Kbit/s to 12 Mbit/s. It supports up to 32 nodes and has a maximum communication distance of 50 meters. Repeaters can extend this range, although they also consume one of the available node slots.
MPI networks typically connect devices such as S7-200 PLCs, HMI panels, programming tools, ET200S modules, and RS485 repeaters. Communication between Siemens PLCs can be done using three main methods: global data packets, no-configuration connections, and configured connections.
4. Fourth, Ethernet Communication
Ethernet is a shared transmission channel concept that originated in 1968 at the University of Hawaii. In 1972, Metcalfe and David Boggs developed the first local area network connecting multiple computers, which later became known as Ethernet. The name was inspired by the idea of "electromagnetic waves traveling through the ether."
By 1979, DEC, Intel, and Xerox standardized Ethernet, leading to its widespread adoption. Over time, various media such as thin coaxial cables, twisted pair, fiber optics, and more were used. Today, Ethernet is one of the most popular network technologies due to its high speed, scalability, ease of use, and rich resources.
5. Fifth, PROFIBUS-DP Communication
PROFIBUS-DP is an open fieldbus system that adheres to European and international standards. Its compact structure and high-speed, stable transmission make it ideal for communication between PLCs and distributed I/O devices on the factory floor.
This protocol is widely used in industrial automation due to its reliability, real-time performance, and ability to handle large amounts of data efficiently. It’s particularly suitable for applications where fast and accurate data exchange is critical.
